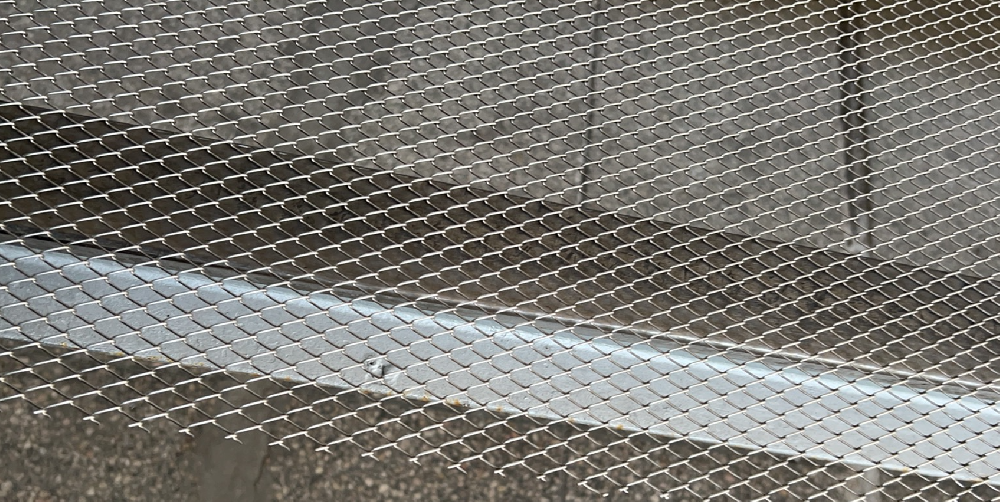

Advantages and applications of stainless steel unidirectional mesh belts

Unidirectional stainless steel mesh belts are a widely used component in industrial conveying. Their "unidirectional" characteristic (typically referring to a weave or structural design that provides higher strength and stability in one direction) offers many unique advantages.

Here are the main advantages of unidirectional stainless steel mesh belts:

1. Excellent Tensile Strength and Stability

Robust Structure: Due to its weaving method (often a plain weave or similar, using thicker wires in the longitudinal direction), it has high tensile strength in the direction of conveyance (usually the length), enabling it to withstand significant tension without easily stretching or deforming.

Smooth Operation: This high stability ensures the belt does not deviate, snake, or buckle during high-speed or heavy-load operation, guaranteeing continuous and stable production line performance.

2. Good Flatness and Level Surface

Flat Surface: The surface of a unidirectional belt is relatively flat with uniform mesh openings, making it ideal for conveying small, delicate parts or products (like electronic components, small bottles, capsules) and preventing them from catching in the mesh or falling through.

Excellent Support: Provides a stable supporting plane for products, making it particularly suitable for processes such as assembly, inspection, and cooling where products need to maintain a stable position.

3. Superior Hygiene and Easy Cleanability

Stainless Steel Material: Made from materials like 304 or 316 stainless steel, it is corrosion-resistant, non-toxic, and odorless, complying with hygiene standards in the food, pharmaceutical, and medical device industries.

Open Structure: The mesh structure allows free passage of air and liquids, facilitating full contact with products during processes like washing, drying, cooling, and spraying. It is also easy to clean in place (CIP) and sterilize in place (SIP), as debris and residues are less likely to accumulate.

4. Excellent Heat and Corrosion Resistance

High-Temperature Resistance: Stainless steel can withstand a wide range of temperatures, from cryogenic to high temperatures (up to several hundred or even over a thousand degrees Celsius depending on the grade), making it suitable for drying ovens, sintering furnaces, quenching lines, and other high-temperature environments.

Corrosion Resistance: Resists water, steam, oils, many chemicals, and acidic environments, resulting in a long service life.

5. Permeability and Drainage

The mesh openings provide natural permeability and drainage. This is crucial in scenarios such as:

Drying and Cooling: Hot or cold air can pass evenly through the belt and the products, improving efficiency.

Washing and Dewatering: Water can drain away effectively.

Frying and Filtration: Oil can circulate, or liquids can be filtered out.

6. Long Service Life and Low Maintenance

The stainless steel material is wear-resistant, corrosion-resistant, and not prone to rusting or degradation, significantly extending the belt's service life.

The robust structure reduces downtime caused by breakage or deformation, lowering overall maintenance costs.

7. Flexible Customization

Parameters of unidirectional stainless steel mesh belts (such as wire diameter, pitch, mesh size, width, and length) can be customized according to specific applications to meet different load, speed, and product specification requirements.

Summary of Primary Application Scenarios:

Based on the advantages above, unidirectional stainless steel mesh belts are widely used in:

Food Processing Industry: Cookie cooling, fried food processing, vegetable washing and dewatering, frozen food processing, can sterilization.

Electronics Manufacturing: Conveying for PCB soldering, washing, drying.

Glass Industry: Annealing and tempering furnace lines.

Powder Metallurgy: Sintering furnace conveyors.

Pharmaceutical Industry: Washing, drying, and conveying of medicine bottles and capsules.

Packaging Industry: Filling, labeling, and coding production lines.

The core advantages of unidirectional stainless steel mesh belts lie in their combination of high strength, high stability, superior hygiene, and good permeability, making them an indispensable component in numerous automated production lines.
